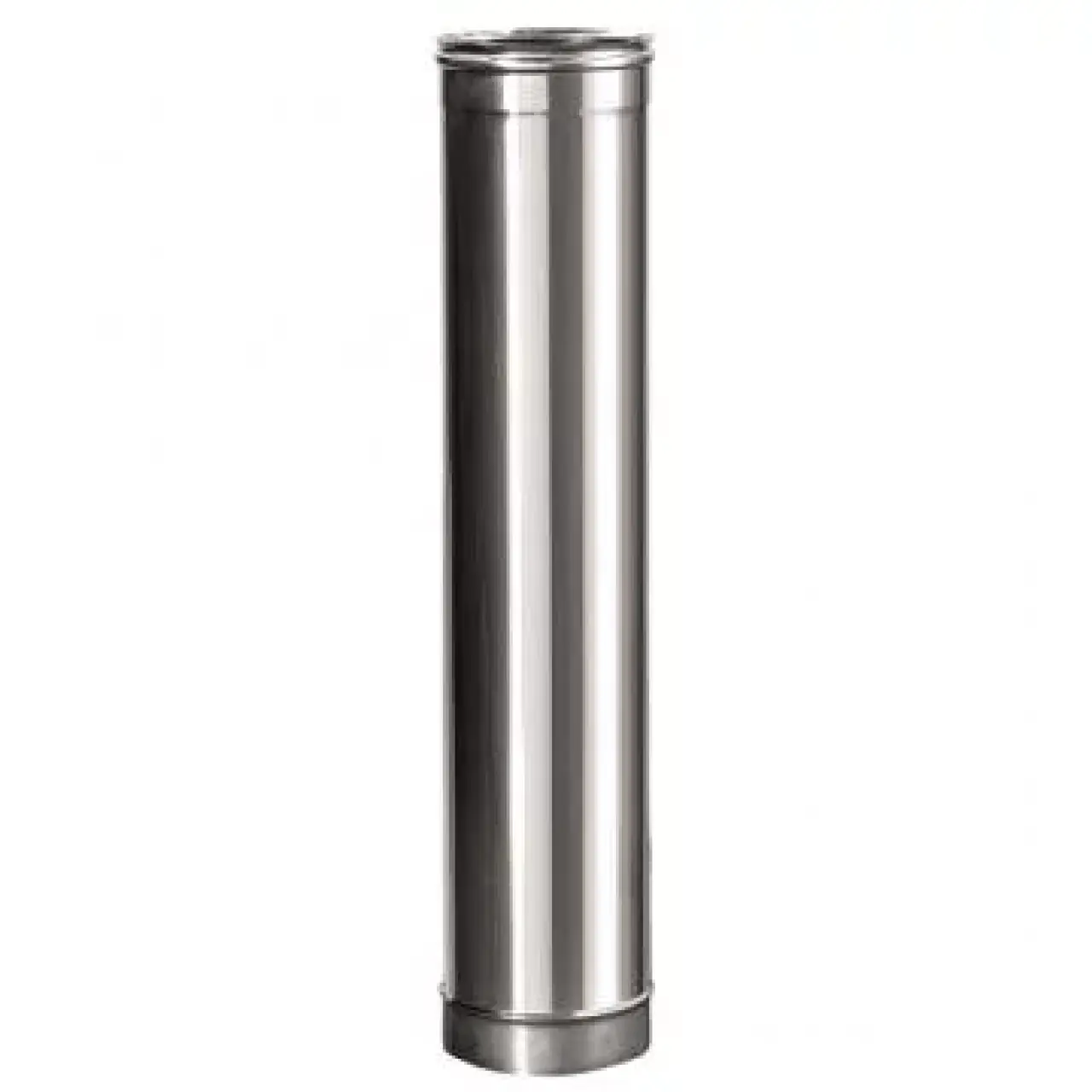

Straight Pipe Module

The module is constructed with advanced Kapella press technology and constitutes the main body of the chimney.

Each module is installed in accordance with the chimney height. Each module is strengthened to carry the chimney by special pressure application.

Kapella design leak-proof clamps are used for installation. Special flange opening enables perfect fitting.

Leaf: 1.4404-1.4401 Stainless Steel (316L)
Dimensions: Ø100~1200mm h:500~1250mm
Leaf Thickness :0,40~3mm
Pressure Segments :N1 – P1 – H2
Joints: Clamp-Gasket-Bellmouth
Corrosion: Vm
Welding: Continuous TIG
